MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M
HomeStore

MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M

MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M

Description:

1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.

2. Brushless motor provides high speed response and high torque.

3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.

4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy and longer service life.

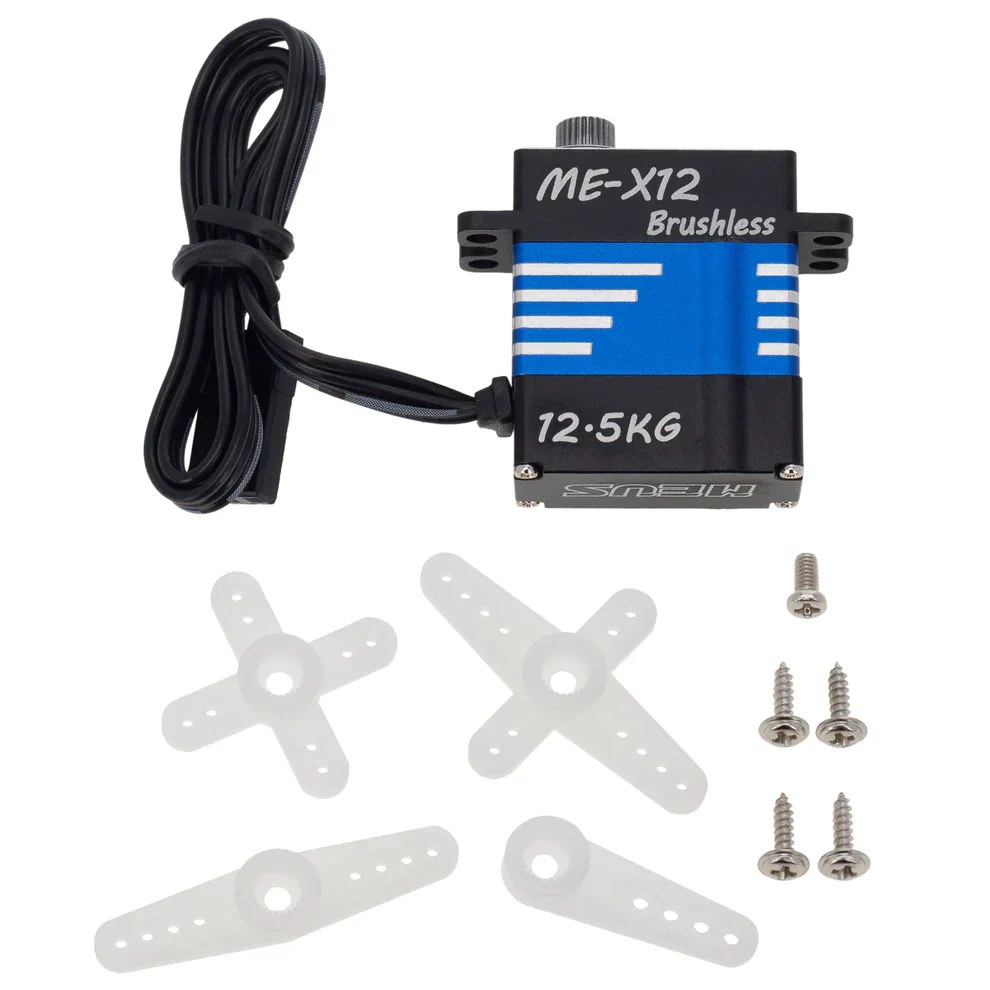

5. Package includes one 12.5KG servo. Comes in a color box package.

Product Number：ME-X12
Operating Voltage：4.8~8.4VDC
Max. Torque-6.0V：≥ 8 kg.cm
Max. Torque-7.4V：≥ 11 kg.cm
Max. Torque-8.4V：≥12.5 kg.cm
No Load Speed-6.0V：≦0.07sec/60°
No Load Speed-7.4V：≦0.06sec/60°
No Load Speed-8.4V：≦0.06sec/60°
Operating Travel Angle：180°+10°(500~2500 us)
Motor Type：Brushless motor
Horn Gear Spline：25T/∅4.90mm
Gear Set Material：Metal gear
Weight：21.6+ 0.5g

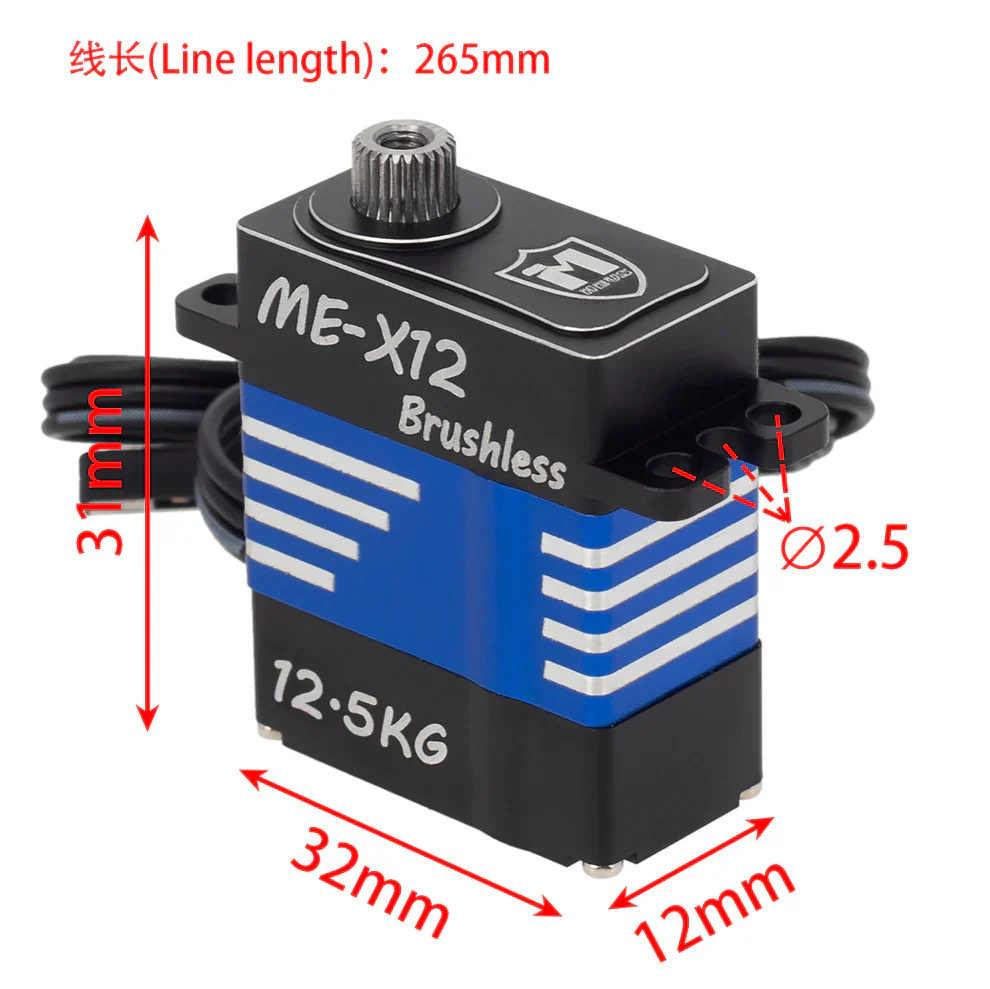

Size：23*12*27mm


$13.80

Original: $45.99

-70%
MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M—

$45.99

$13.80

More Images

MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M - Image 2
MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M - Image 3
MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M - Image 4
MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M - Image 5

MEUS Racing Brushless High Torque Micro Servo Shifting Servo Supports 8.4V/12.5KG for 1/24 SCX 24 1/18 TRX4M

Description:

1. Suitable for steering servo of SCX24 and TRX4M, and also compatible with shifting servo of 1/10 and 1/8 models.

2. Brushless motor provides high speed response and high torque.

3. Supports voltage range of 6-8.4V, providing 8-12.5KG torque.

4. High-precision metal gears with high sensitivity, good stability, low noise, better accuracy and longer service life.

5. Package includes one 12.5KG servo. Comes in a color box package.

Product Number：ME-X12
Operating Voltage：4.8~8.4VDC
Max. Torque-6.0V：≥ 8 kg.cm
Max. Torque-7.4V：≥ 11 kg.cm
Max. Torque-8.4V：≥12.5 kg.cm
No Load Speed-6.0V：≦0.07sec/60°
No Load Speed-7.4V：≦0.06sec/60°
No Load Speed-8.4V：≦0.06sec/60°
Operating Travel Angle：180°+10°(500~2500 us)
Motor Type：Brushless motor
Horn Gear Spline：25T/∅4.90mm
Gear Set Material：Metal gear
Weight：21.6+ 0.5g
Size：23*12*27mm
