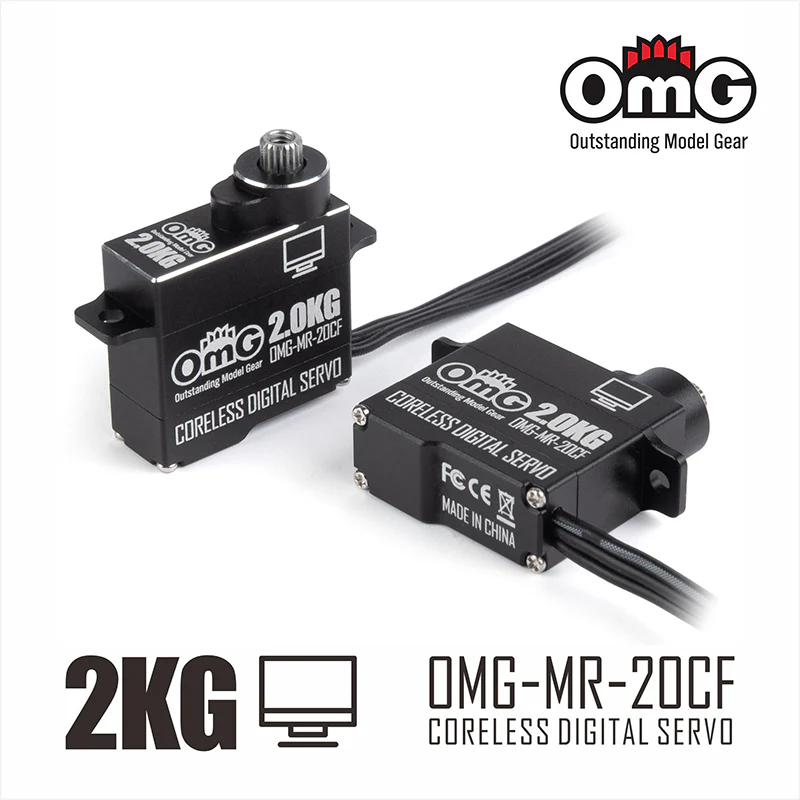

OMG 2KG Coreless Micro Servo

Micro size 3kg full metal programmable coreless digital servo with JST1.5 connector plug for mini-z rc car Gear:Titanium 20T/Φ4.9mm Dimension:20X8X18.8 Micro size (mm)

Operating voltage:4.8-8.4V

Operating speed:                 Stall torque:

4.8V-0.072sec/60°                4.8V-2.0kgf.cm(28oz-in)

6.0V-0.065sec/60°                6.0V-2.2kgf.cm(31oz-in)

7.4V-0.055sec/60°                7.4V-2.5kgf.cm(35oz-in)

8.4V-0.050sec/60°                8.4V-3.0kgf.cm(42oz-in)

Gear material:Titanium

Horn gear spline:20T Φ3.5

Size:0.79x0.31x0.74in

Case material:Full metal

Weight:0.25oz

Bearing:Metal bearing

Motor type:Coreless

Operating temperature:-15℃~+70℃

Operating travel :≈180±10°

Neutral position :1520μsec

Frequency:1520uS

Refresh rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:60mm

Waterproof level:Dust & Water Splash Resistacne

Programmable:Yes
