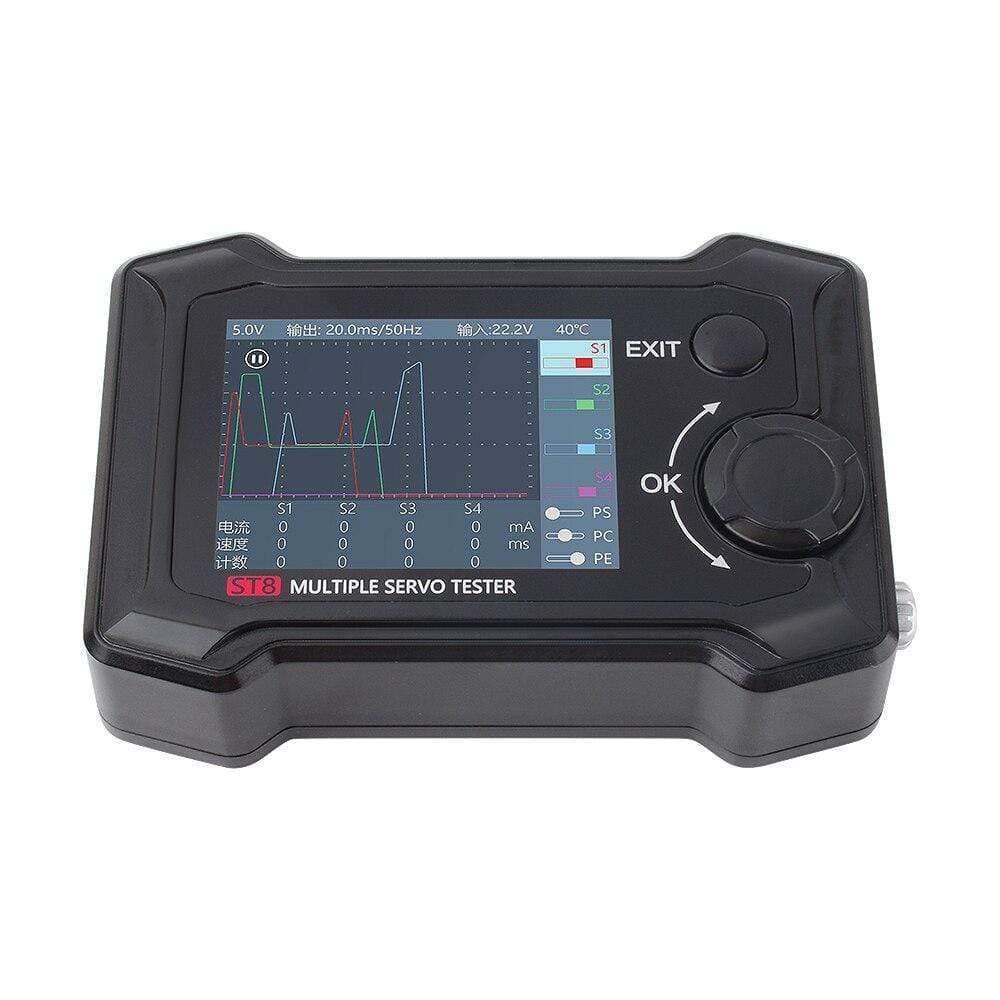

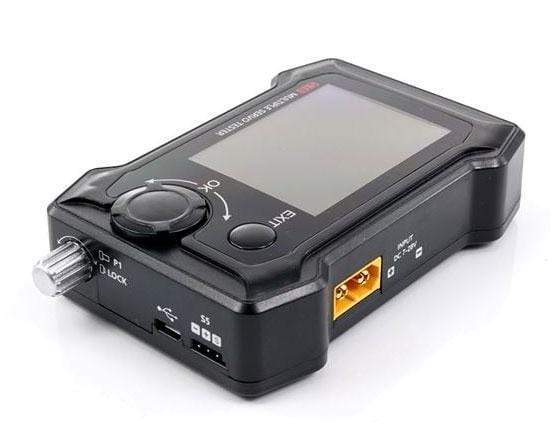

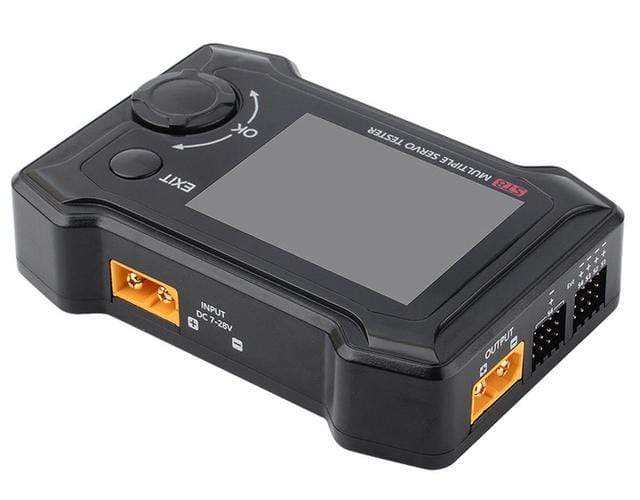

ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)
Specs:
Input voltage: 7-28V@MAX 10A
Main output port: 5.0V-28.0V@MAX 10A
Signal port: 5.0V-8.4V@MAX 4A/S1-S4
Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal:
100us-2900us@33-1000Hz @S1-S4
PWM 500us-2500us@S5
PPM 8CH@S5 SBUS 16CH@S5
P1 rotation range: 1000us-2000us@P1
MicroUSB: Upgrade @ USB3.0
LCD display: 2.4 inch TFT RGB 320*240 resolution
Product Size: 99mm*68mm*26mm
Weight: 140g
Packing Size: 105mm*80mm*45mm
Weight: 160g
$16.50
Original: $54.99
-70%ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)—
$54.99
$16.50More Images
ToolkitRC ST8 Advanced Servo Tester, Driver, Analyzer (PWM/PPM/S.Bus)
Specs:
Input voltage: 7-28V@MAX 10A
Main output port: 5.0V-28.0V@MAX 10A
Signal port: 5.0V-8.4V@MAX 4A/S1-S4
Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal:
100us-2900us@33-1000Hz @S1-S4
PWM 500us-2500us@S5
PPM 8CH@S5 SBUS 16CH@S5
P1 rotation range: 1000us-2000us@P1
MicroUSB: Upgrade @ USB3.0
LCD display: 2.4 inch TFT RGB 320*240 resolution
Product Size: 99mm*68mm*26mm
Weight: 140g
Packing Size: 105mm*80mm*45mm
Weight: 160g
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Specs:
Input voltage: 7-28V@MAX 10A
Main output port: 5.0V-28.0V@MAX 10A
Signal port: 5.0V-8.4V@MAX 4A/S1-S4
Output voltage: 5.0V-8.4V@MAX 4A/S4 Ext.
Output signal:
100us-2900us@33-1000Hz @S1-S4
PWM 500us-2500us@S5
PPM 8CH@S5 SBUS 16CH@S5
P1 rotation range: 1000us-2000us@P1
MicroUSB: Upgrade @ USB3.0
LCD display: 2.4 inch TFT RGB 320*240 resolution
Product Size: 99mm*68mm*26mm
Weight: 140g
Packing Size: 105mm*80mm*45mm
Weight: 160g
