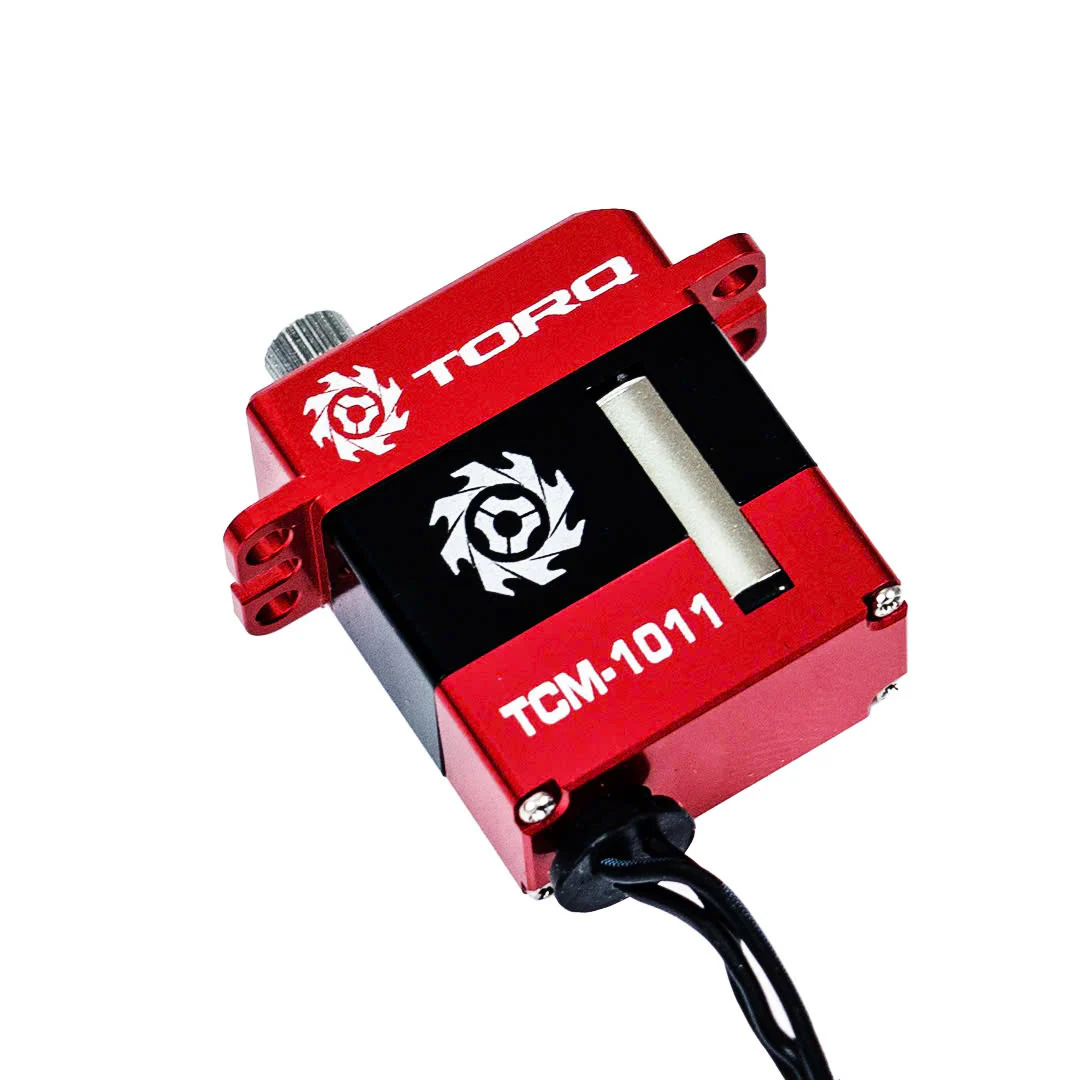

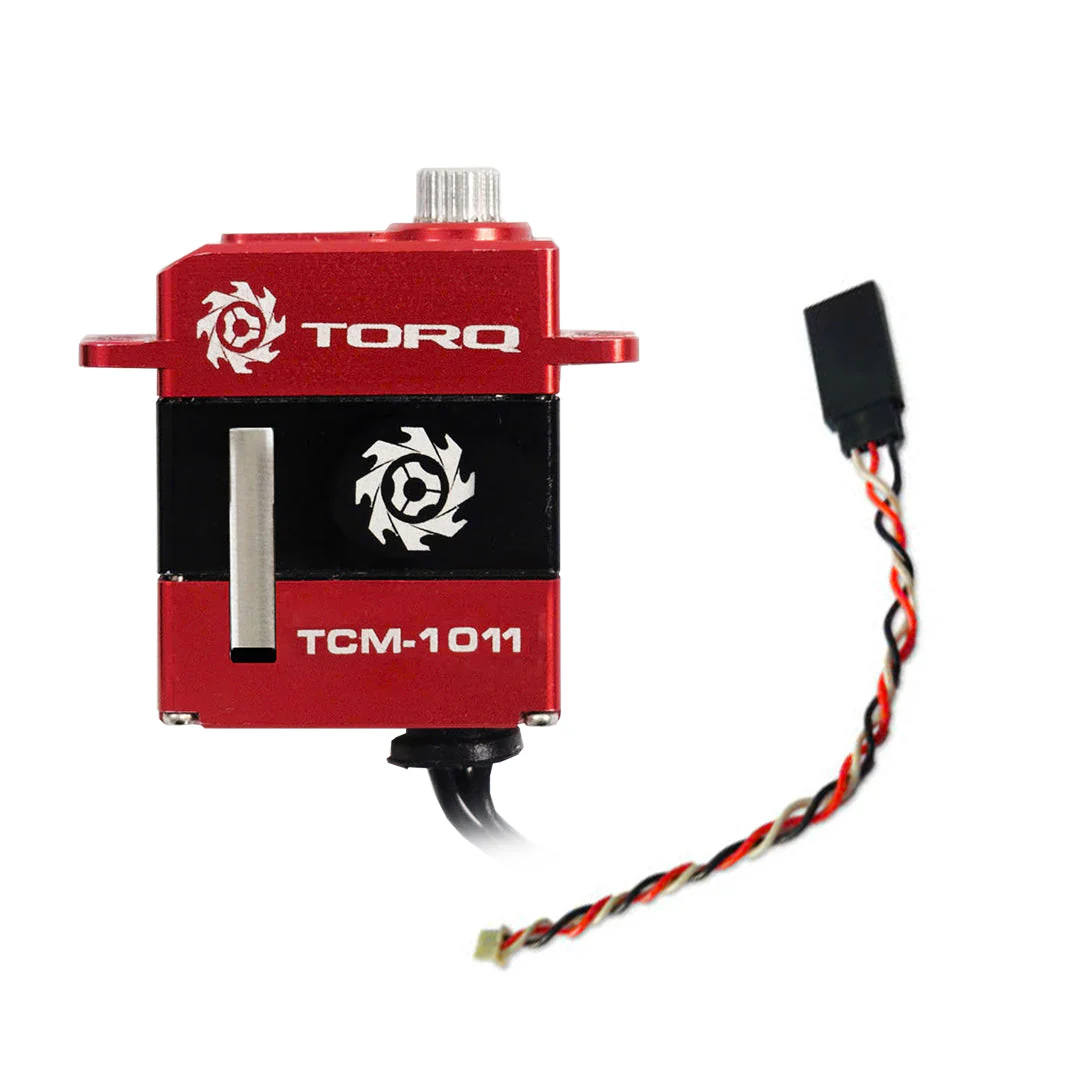

TORQ Servo TCM-1011 for FX118, FMS

TORQ Servo TCM-1011 fitting FX118, FMS needs:

• TCM-1011 Full CNC Case Metal Gear Coreless Servo


  Features

  - High Torque Output: Delivers powerful performance for small-scale crawlers.

  - Rear Exit Wires: Ensures suspension travel is unhindered for optimal performance.

  - Simplified Installation: Easy to mount due to its unique design.

  - Enhanced Clearance: Designed for ultimate clearance around the servo.

  Specifications

  - Dead Bandwidth: 2μs

  - Working Frequency: 1520μs / 330Hz

  - Operating Voltage: 6.0V - 8.4V

  - Motor Type: Coreless Motor

  - Operating Speed:

       - At 6.0V: 0.1 sec/60°

       - At 8.4V: 0.07 sec/60°

  - Stall Torque:

       - At 6.0V: 8.2 kg-cm (113 oz-in)

       - At 8.4V: 11.5 kg-cm (160 oz-in)

  - Dimensions: 23 x 12 x 27.5 mm (0.91 x 0.47 x 1.08 inches)

  - Weight: 20.0 g (0.7 oz)

  - Connector Wire Length: JR 170 mm (6.7 inches)

  - Output Gear Spline: 25T

• TSP-1002 Servo extension cable for FX118, CR-18P 2024, FCX24, FCX18, FMT24, CR-18P EVO PRO
